SHO 3300

Articulating SLIM TV mount 30" - 60"

For television
Load capacity 40 kg
Min. screen diagonal 30 "
Max. screen diagonal 60 "
Function and installation
Variability articulating
Way of movement mechanical
Tilt downwards 12
Min. distance from wall 5,3 cm
Max. distance from wall 5,3 cm

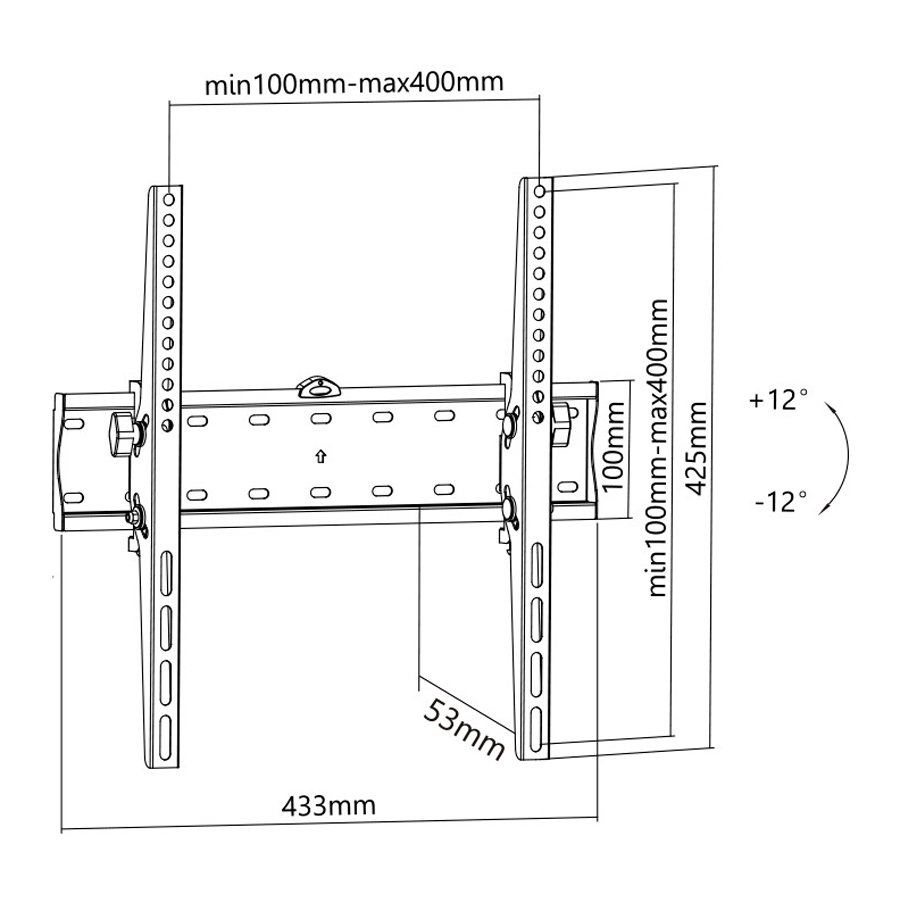

Dimensions of mount
Height 42,5 cm
Width 43,3 cm
Depth 5,3 cm
TV mount pad dimensions
Minimum span 100 X 100 MM
Maximum span 400 X 400 MM
VESA 75x75
VESA 100x100
VESA 200x100
VESA 200x200
VESA 300x200
VESA 300x300
VESA 400x200
VESA 400x300
VESA 400x400
VESA 600x200
VESA 600x300
VESA 600x400
Other
Material steel
Spirit level
Removal prevention mechanism
Colour black
