SHO 3900

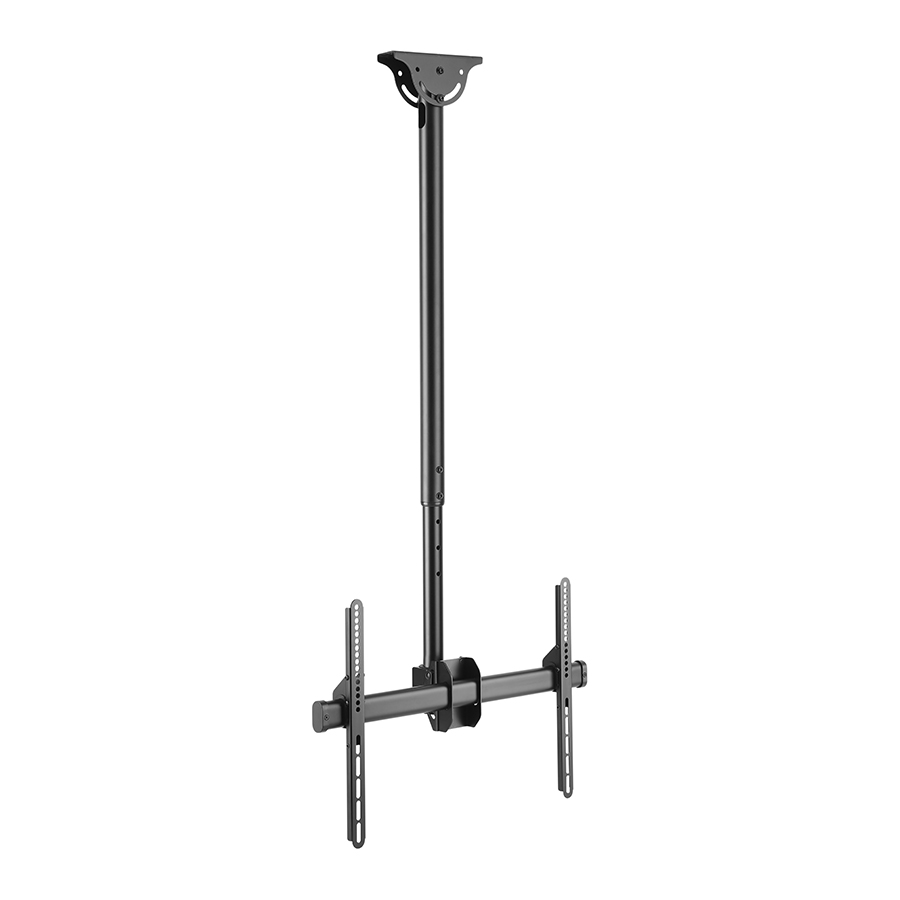

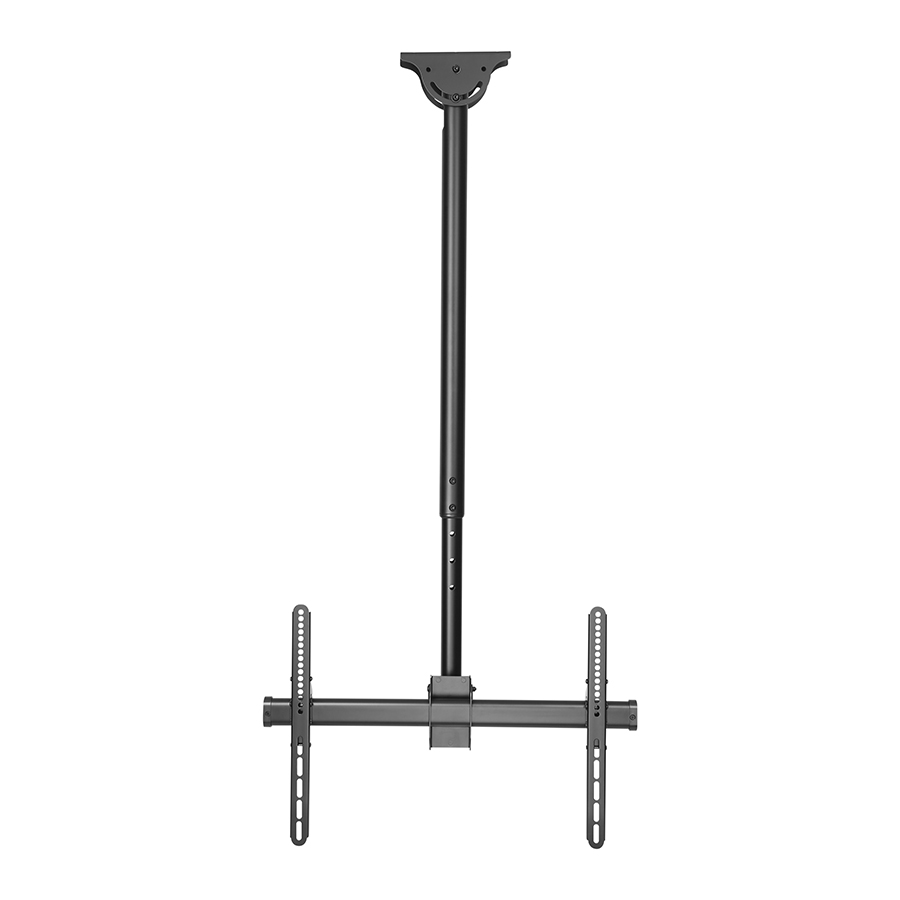

Ceiling articulating TV mount single 40" - 70"

For television
Load capacity 50 kg
Min. screen diagonal 40 "
Max. screen diagonal 70 "
Function and installation
Way of movement mechanical

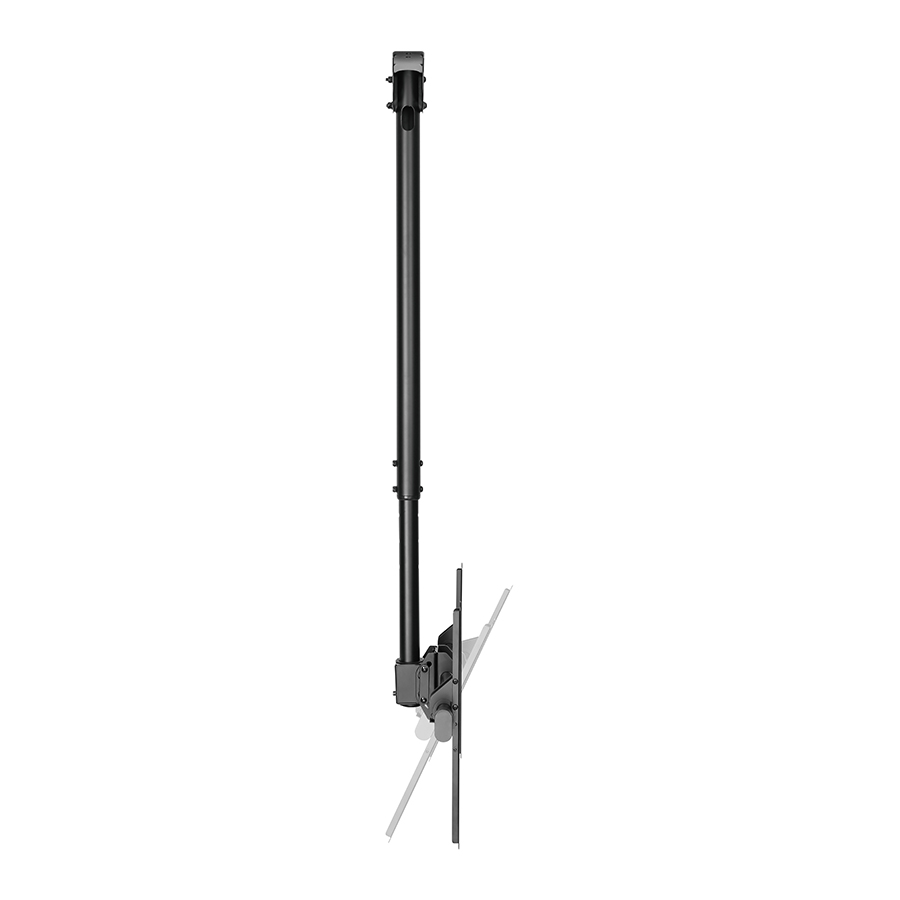

Tilt downwards 25
Swivel +/- 180°
TV/Monitor Orientation horizontal / vertical
Level correction +/- 3°

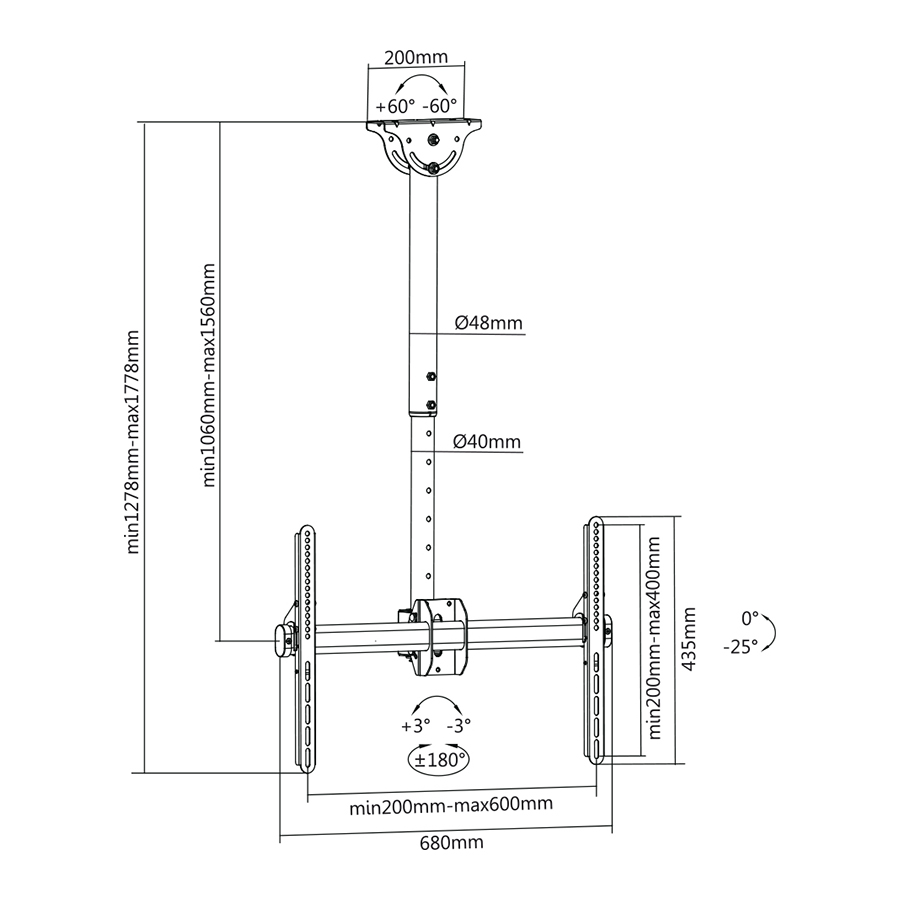

Dimensions of mount
Height 177,8 cm
Width 68 cm
TV mount pad dimensions
Minimum span 200 X 200 MM
Maximum span 600 X 400 MM
VESA 75x75
VESA 100x100
VESA 200x100
VESA 200x200
VESA 300x200
VESA 300x300
VESA 400x200
VESA 400x300
VESA 400x400
VESA 600x200
VESA 600x300
VESA 600x400
Spirit level
Removal prevention mechanism
Colour black
