SHO 8610

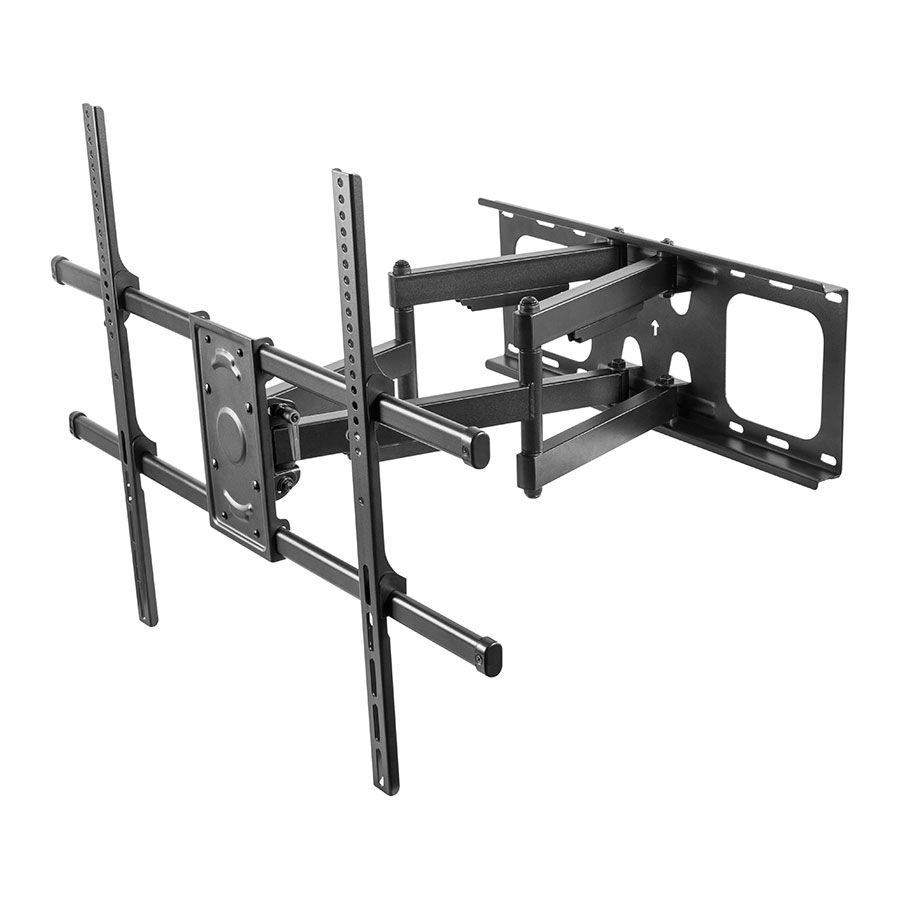

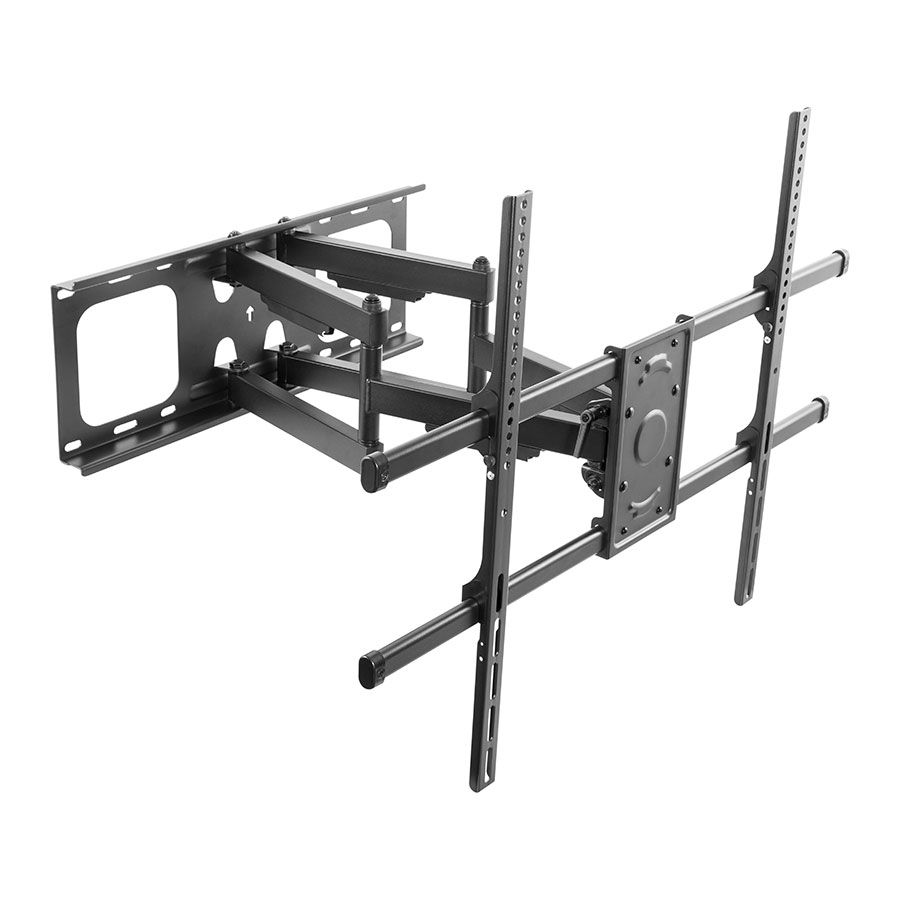

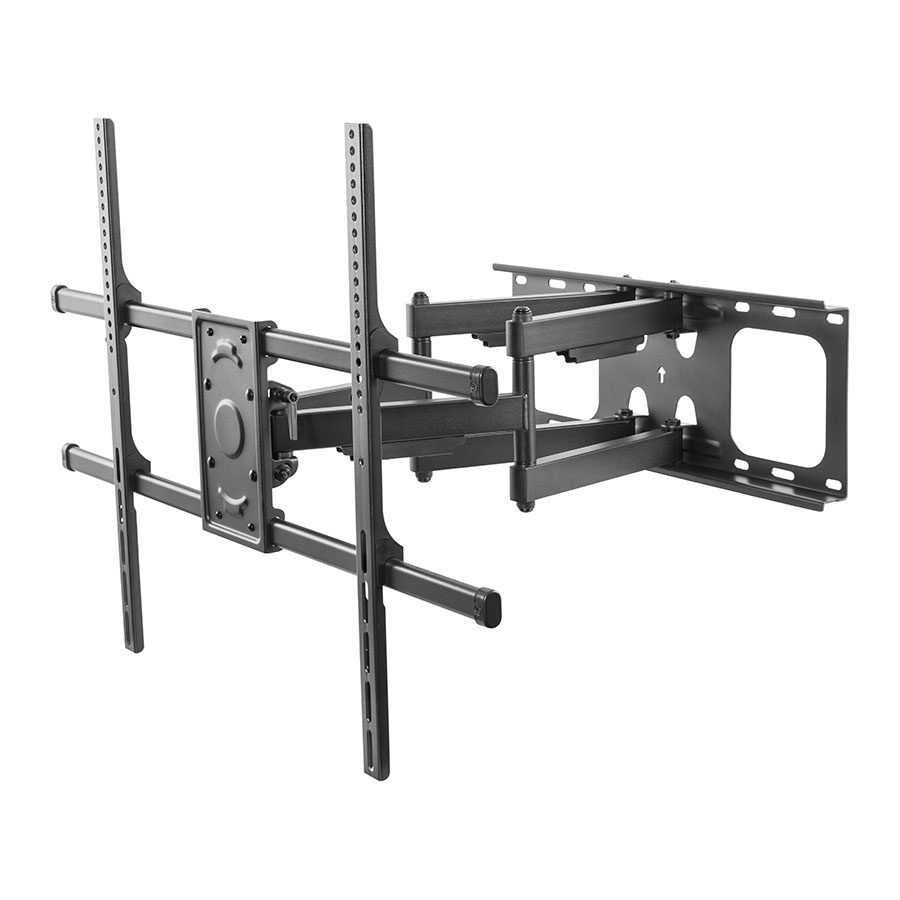

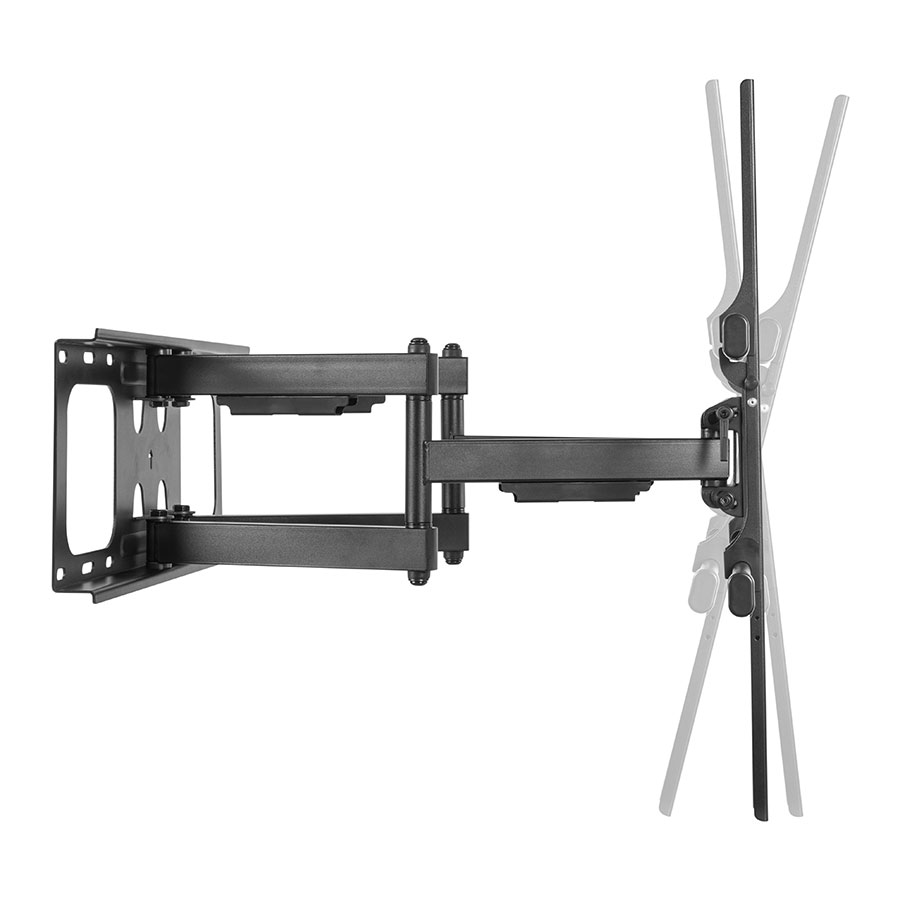

Extensible adjustable mount for TV 50" - 100"

SHO 8610
Product image
{% CurrentPageInfo.DocumentName |(user)administrator|(hash)8c3ba9731e7608b0df100d48c2f92724c387e98ebfdf7b97b1c63c2f43055783%}
SHO 8610
{% CurrentPageInfo.DocumentName |(user)administrator|(hash)8c3ba9731e7608b0df100d48c2f92724c387e98ebfdf7b97b1c63c2f43055783%}
SHO 8610
{% CurrentPageInfo.DocumentName |(user)administrator|(hash)8c3ba9731e7608b0df100d48c2f92724c387e98ebfdf7b97b1c63c2f43055783%}
SHO 8610
{% CurrentPageInfo.DocumentName |(user)administrator|(hash)8c3ba9731e7608b0df100d48c2f92724c387e98ebfdf7b97b1c63c2f43055783%}
SHO 8610
{% CurrentPageInfo.DocumentName |(user)administrator|(hash)8c3ba9731e7608b0df100d48c2f92724c387e98ebfdf7b97b1c63c2f43055783%}
SHO 8610
{% CurrentPageInfo.DocumentName |(user)administrator|(hash)8c3ba9731e7608b0df100d48c2f92724c387e98ebfdf7b97b1c63c2f43055783%}
SHO 8610
{% CurrentPageInfo.DocumentName |(user)administrator|(hash)8c3ba9731e7608b0df100d48c2f92724c387e98ebfdf7b97b1c63c2f43055783%}
SHO 8610
{% CurrentPageInfo.DocumentName |(user)administrator|(hash)8c3ba9731e7608b0df100d48c2f92724c387e98ebfdf7b97b1c63c2f43055783%}
SHO 8610
{% CurrentPageInfo.DocumentName |(user)administrator|(hash)8c3ba9731e7608b0df100d48c2f92724c387e98ebfdf7b97b1c63c2f43055783%}
SHO 8610
{% CurrentPageInfo.DocumentName |(user)administrator|(hash)8c3ba9731e7608b0df100d48c2f92724c387e98ebfdf7b97b1c63c2f43055783%}
{% CurrentPageInfo.DocumentName |(user)administrator|(hash)8c3ba9731e7608b0df100d48c2f92724c387e98ebfdf7b97b1c63c2f43055783%}
{% CurrentPageInfo.DocumentName |(user)administrator|(hash)8c3ba9731e7608b0df100d48c2f92724c387e98ebfdf7b97b1c63c2f43055783%}
{% CurrentPageInfo.DocumentName |(user)administrator|(hash)8c3ba9731e7608b0df100d48c2f92724c387e98ebfdf7b97b1c63c2f43055783%}
{% CurrentPageInfo.DocumentName |(user)administrator|(hash)8c3ba9731e7608b0df100d48c2f92724c387e98ebfdf7b97b1c63c2f43055783%}
{% CurrentPageInfo.DocumentName |(user)administrator|(hash)8c3ba9731e7608b0df100d48c2f92724c387e98ebfdf7b97b1c63c2f43055783%}
{% CurrentPageInfo.DocumentName |(user)administrator|(hash)8c3ba9731e7608b0df100d48c2f92724c387e98ebfdf7b97b1c63c2f43055783%}
{% CurrentPageInfo.DocumentName |(user)administrator|(hash)8c3ba9731e7608b0df100d48c2f92724c387e98ebfdf7b97b1c63c2f43055783%}
{% CurrentPageInfo.DocumentName |(user)administrator|(hash)8c3ba9731e7608b0df100d48c2f92724c387e98ebfdf7b97b1c63c2f43055783%}
Instructional video
80 kg
50 " - 100 "
For television
Load capacity 80 kg
Min. screen diagonal 50 "
Max. screen diagonal 100 "
Function and installation
Way of movement mechanical
Tilt downwards 15
Swivel +/- 60°
TV/Monitor Orientation horizontal

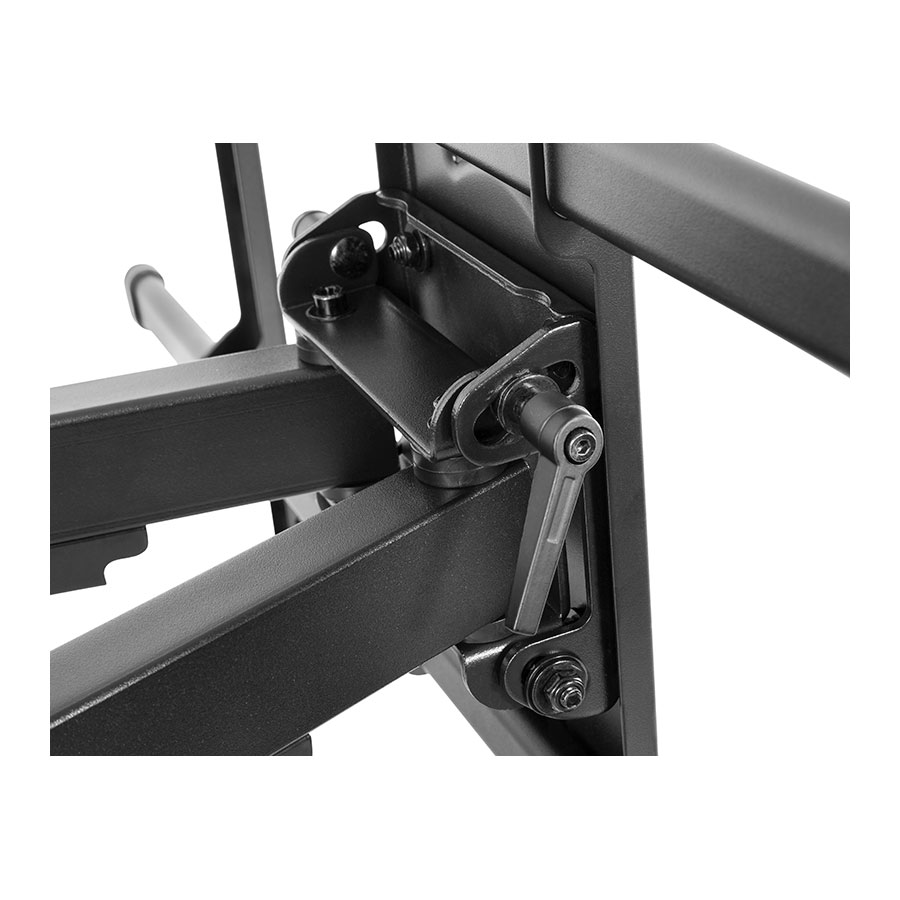

Level correction +/- 3°

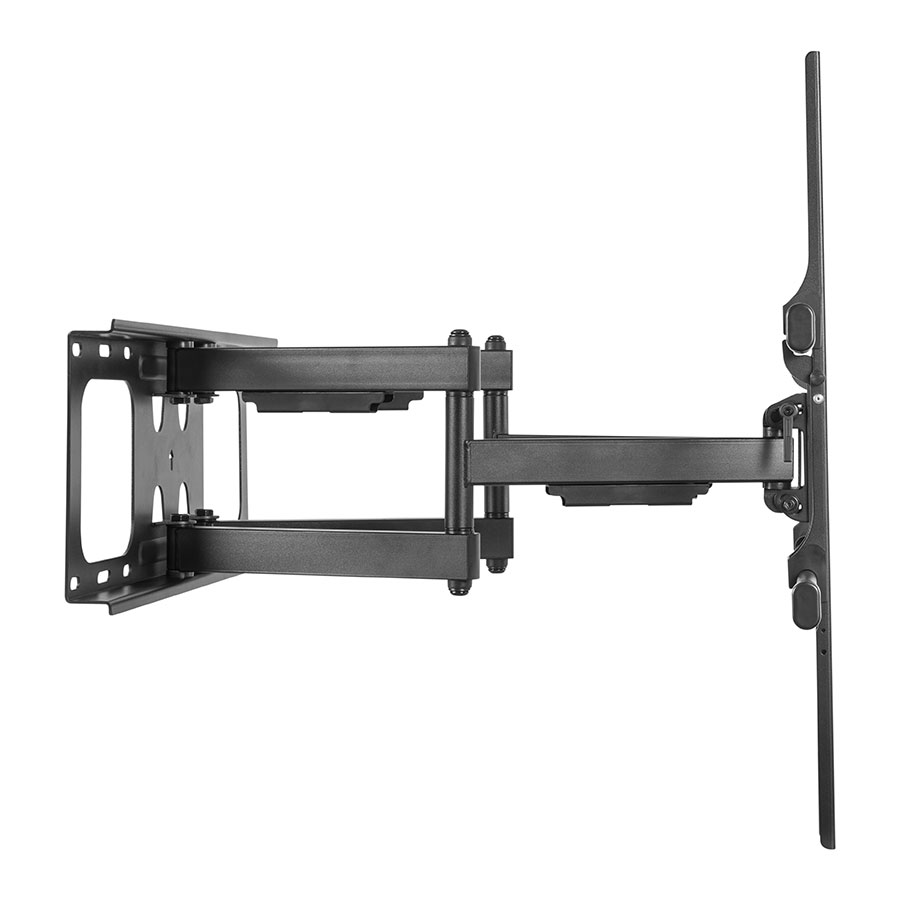

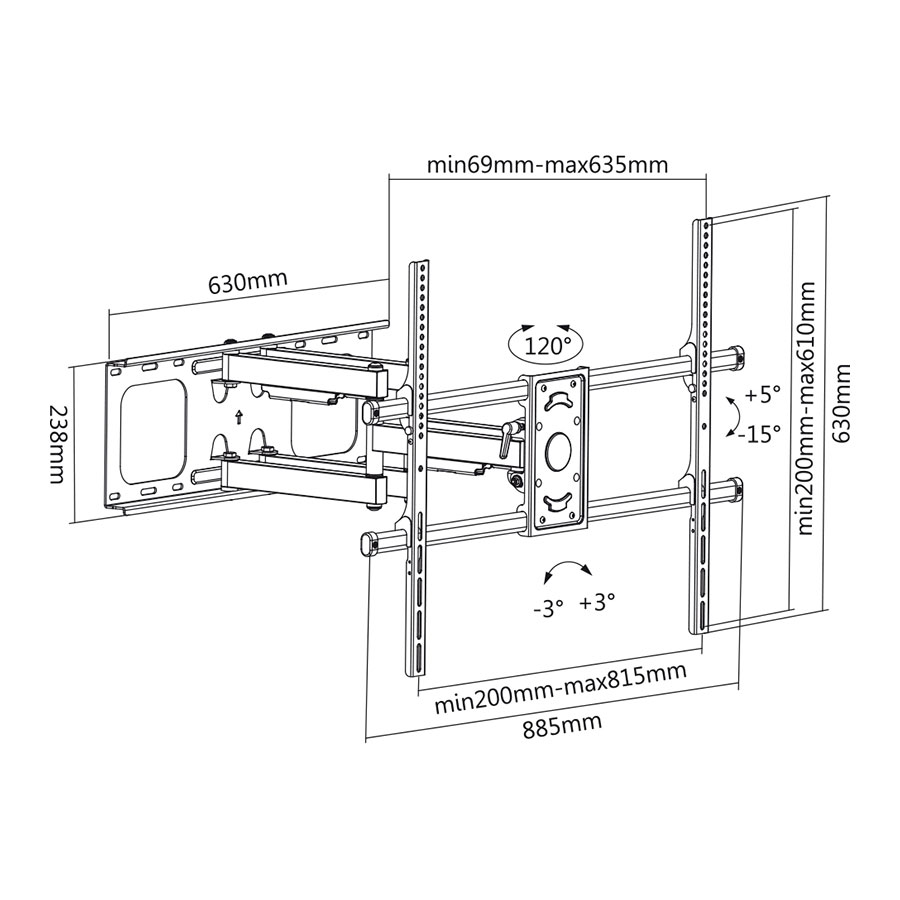

Min. distance from wall 6,9 cm
Max. distance from wall 63,5 cm

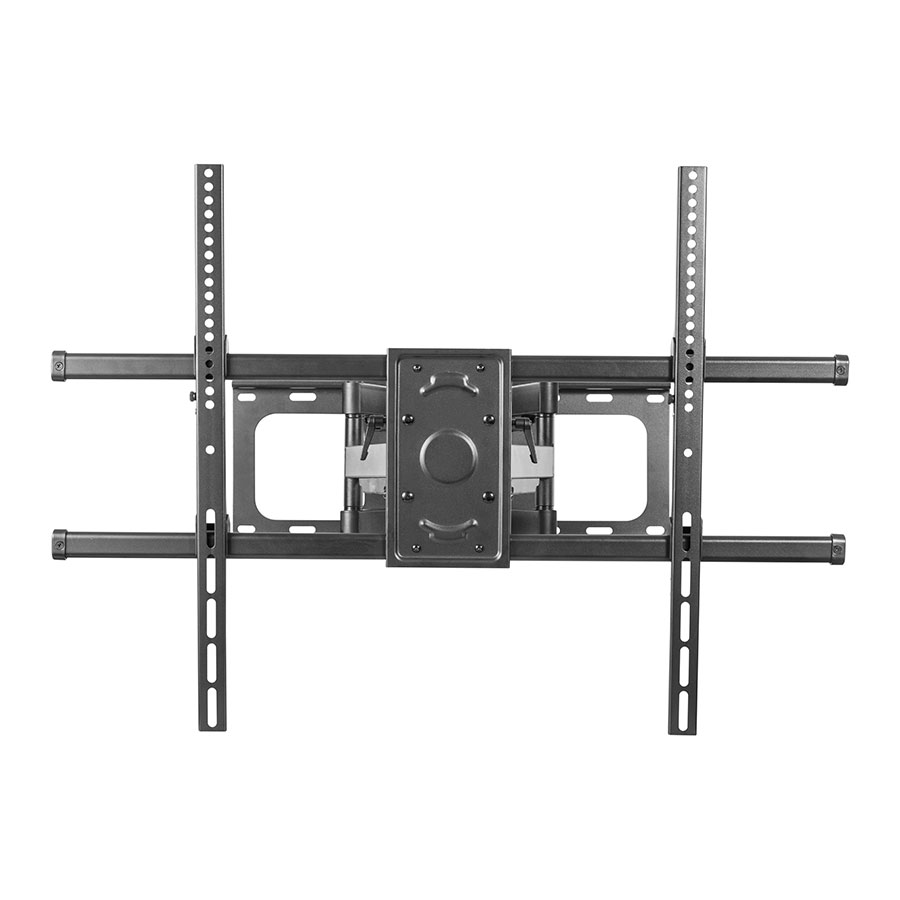

TV mount pad dimensions
Minimum span 200 X 200 MM
VESA 75x75
VESA 100x100
VESA 200x100
VESA 200x200
VESA 300x200
VESA 300x300
VESA 400x200
VESA 400x300
VESA 400x400
VESA 600x200
VESA 600x300
VESA 600x400
VESA 600x600
Other
Spirit level
Removal prevention mechanism
Colour black
