SHO 7600

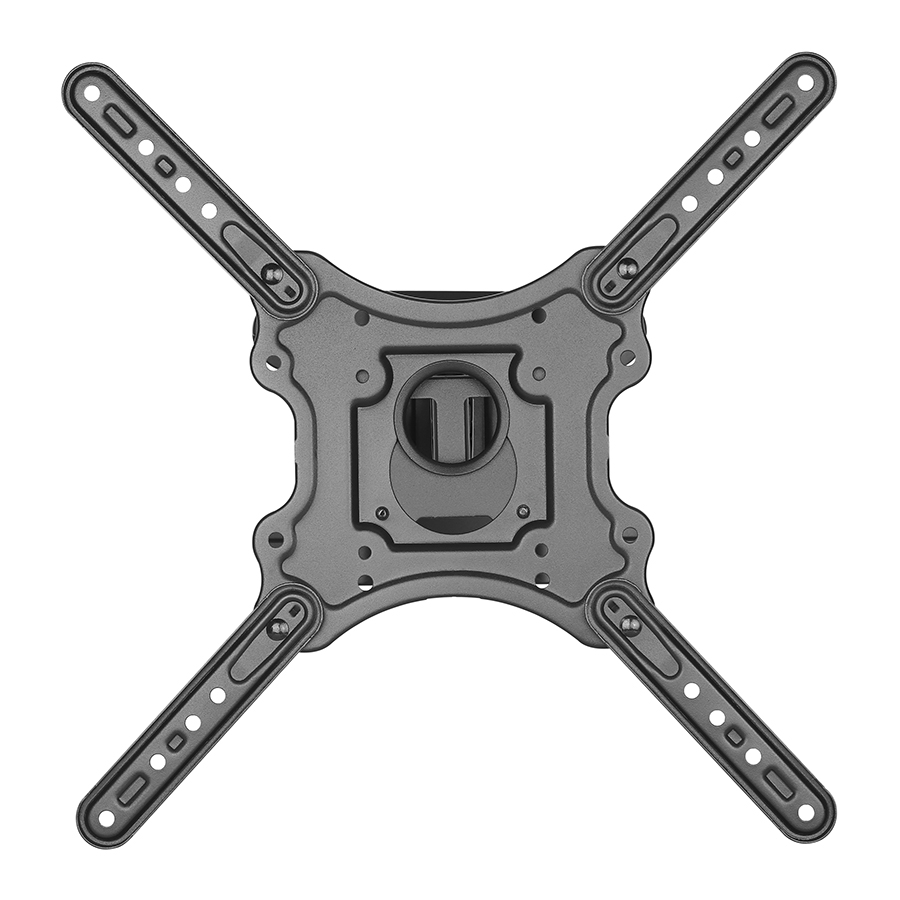

Extensible adjustable mount SLIM for TV 23" - 70"

For television
Load capacity 40 kg
Min. screen diagonal 23 "
Max. screen diagonal 70 "
Function and installation
Way of movement mechanical

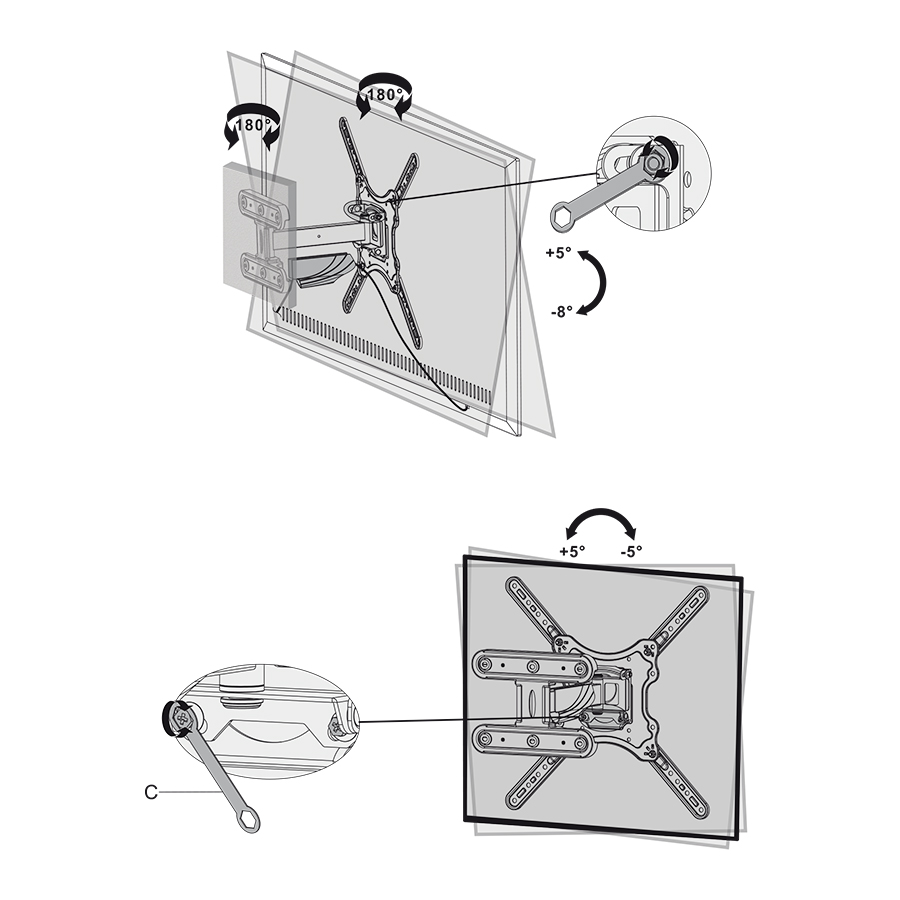

Tilt downwards 8
Swivel +/- 90°
TV/Monitor Orientation horizontal / vertical
Level correction +/- 3°

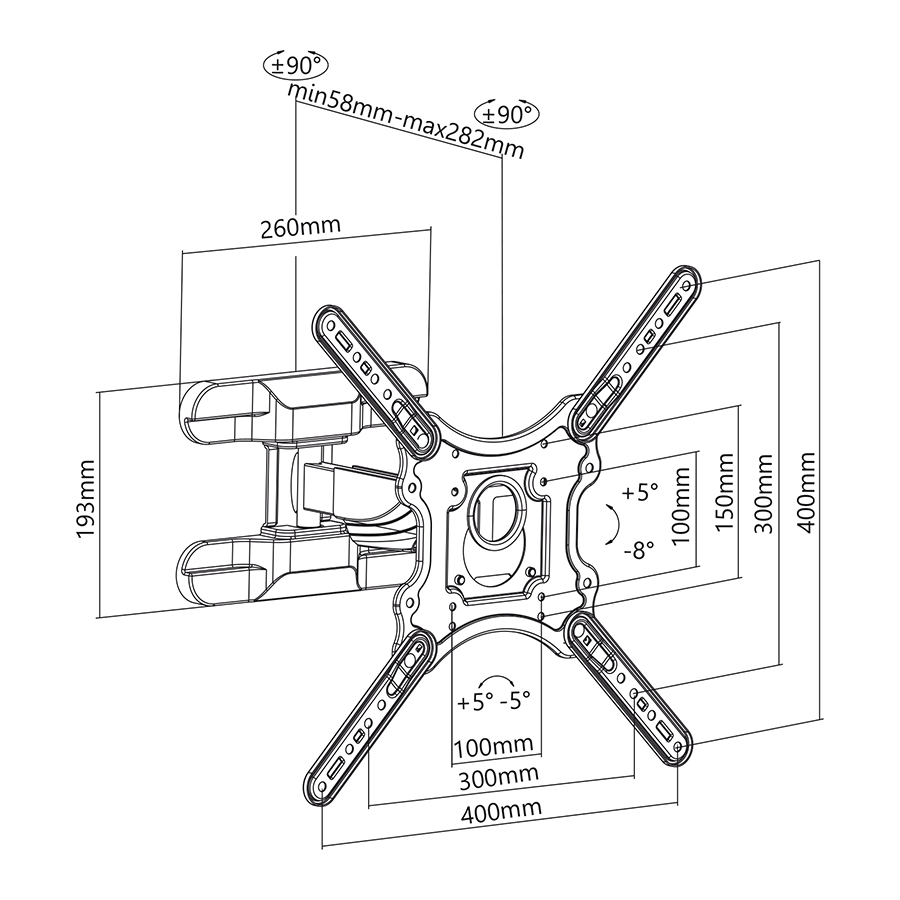

Min. distance from wall 5,8 cm
Max. distance from wall 28,2 cm
TV mount pad dimensions
VESA 75x75
VESA 100x100
VESA 200x100
VESA 200x200
VESA 300x200
VESA 300x300
VESA 400x200
VESA 400x300
VESA 400x400
VESA 600x200
VESA 600x300
VESA 600x400
VESA 600x600
Spirit level
Removal prevention mechanism
Colour black
